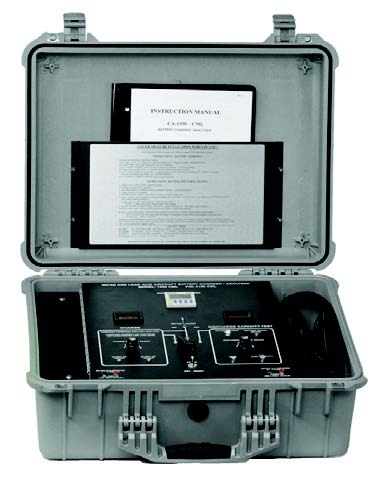

Power Products CA-1550 CML Aircraft Battery Charger/Analyzer PN: CA-1550-CML

CA-1550-CML (Power Products) Features and Specifications *

The Power Products CA-1550-CML is an advanced portable battery charger and analyzer designed specifically for aviation and ground support applications. This highly reliable unit is optimized for handling Nickel Cadmium (NiCad) and Lead Acid aircraft batteries, both sealed and vented, making it a versatile tool for battery maintenance. It delivers a comprehensive solution for charging, discharging, and capacity testing of batteries used in critical aircraft systems. Given its robust design and advanced features, it is a preferred choice for professionals in the aviation industry looking for accurate and dependable battery diagnostics. One of the standout features of the CA-1550 CML is its compatibility with a wide variety of battery types. Whether dealing with Nickel Cadmium or Lead Acid batteries, this unit excels in both charging and testing. It is suitable for use with a broad range of battery configurations, from single-cell units to batteries as large as 22 cells. This flexibility makes it a practical solution for those maintaining diverse aircraft fleets or ground support equipment. The unit is equally adept at handling 12-volt and 24-volt lead-acid batteries, extending its range of applications. Unlike many complex battery maintenance tools on the market, the Power Products 4159 battery charger/analyzer does not require programming or the use of an external computer system to function. This simplicity in operation makes it extremely user-friendly, ensuring that maintenance teams can focus on critical tasks without needing advanced technical knowledge to operate the unit. With straightforward digital readouts of voltage, amperage, and time, users can easily monitor the charging and testing process in real-time. This is a significant advantage for those seeking quick and efficient battery diagnostics and maintenance.

The Model CA-1550-CML offers both constant potential and constant current charging methods, giving users the flexibility to choose the best approach for their specific battery maintenance needs. The unit's charging current is adjustable, ranging from 0 to 25 amps, which allows precise control over the charging process. Additionally, the charger comes equipped with an automatic timer to either terminate or read the charge time and discharge time, adding a layer of automation that reduces the need for constant supervision. On the testing side, the device features a discharge current that is adjustable from 0 to 50 amps, enabling it to conduct rigorous capacity tests. This functionality is crucial for accurately assessing a battery’s ability to maintain voltage over a set period. The unit automatically measures the battery’s voltage during this process and assigns a pass or fail rating depending on whether the battery can hold the minimum required voltage. By freezing the meter readings at the end of the test, the Power Products CA-1550 CML provides the operator with clear, reliable data on the battery’s ampere-hour capacity. This equipment excels in battery capacity testing, which is a critical aspect of maintaining aircraft batteries. During a capacity test, the unit discharges the battery at a constant current, and the voltage is carefully monitored throughout the process. It is designed to test whether the battery can sustain a specified minimum voltage for a preset duration, usually one hour. This is an essential test in determining the remaining lifespan and reliability of the battery. Once the capacity test is complete, this tool automatically recharges the battery, further simplifying the maintenance process. This seamless integration of capacity testing and recharging saves time and ensures that the battery is ready for use after testing. The ability to quickly and efficiently perform these tasks makes the CA-1550CML an invaluable tool for aviation maintenance professionals.

The Power Products CA-1550 CML (PN: 4159) is designed with portability and durability in mind. Weighing approximately 60 pounds and enclosed in a protective carrying case, this unit is highly portable and can be used in both bench-mounted and field applications. The rugged construction ensures it can withstand the demanding environments often encountered in aviation and ground support operations. Its compact design, measuring 21 inches in length, 8.6 inches in height, and 17.5 inches in depth, makes it easy to transport and store when not in use. The combination of portability and robustness makes the CA-1550CML a practical solution for technicians working in various locations. The CA-1550-CML (4159) is equipped with digital meters that display key data such as voltage, current, and elapsed time. These meters provide highly accurate readings, enabling users to closely monitor the charging and testing processes. By freezing the meter readings at the end of a test, the CA-1550 CML ensures that users have clear data to review, eliminating any guesswork from the process. These features make this highly reliable for battery diagnostics, ensuring that aircraft batteries are maintained to the highest standards. The Power Products CA-1550CML Battery Charger/Analyzer is designed to operate on a wide range of input voltages, making it adaptable to different power supply situations. It operates at 12 amps on a 115V power supply and 6 amps on a 230V power supply, with a frequency range of 50/60 Hz. This adaptability makes it suitable for use in various regions and environments, ensuring consistent performance regardless of the available power source. One of the most critical applications of the CA-1550-CML is in maintaining aircraft emergency systems. The accurate testing and guaranteed emergency capacity of the batteries it services are vital for ensuring the safety and reliability of these systems. Whether working with lead-acid or Nickel Cadmium batteries, the CA-1550 CML ensures that emergency power systems remain fully operational in critical situations.

The Power Products CA-1550-CML price and features make it a very attractive option compared to similar battery chargers/analyzers available on the market.

Features

• The Power Products CA-1550 CML supports Nickel Cadmium (NiCad) and Lead Acid aircraft batteries, both sealed and vented. It handles various configurations, from a single cell to 22 cells, including 12-volt and 24-volt systems.
• The unit provides flexibility in charging and testing with adjustable charge currents from 0 to 25 amps and discharge currents from 0 to 50 amps, enabling customized settings for different battery types.
• The CA-1550 CML supports both constant current and constant potential charging methods, allowing users to select the optimal charging mode based on battery requirements.
• The unit is equipped with digital readouts for voltage, amperage, and time, ensuring real-time monitoring and precise data during the charging and testing process.
• The device includes automatic timing functions that terminate the charging or discharge process when the pre-set parameters are reached.
• The Power Products CA-1550 CML automatically assesses the battery’s ability to maintain the minimum required voltage and provides a pass or fail result based on its capacity.
• Housed in a protective carrying case, the unit weighs approximately 60 pounds and is compact, making it portable and suitable for both fieldwork and bench-mounted operations.
• The unit is designed for simple operation without the need for programming or computer interfaces.

Benefits

• The CA-1550 CML is user-friendly, with no need for programming or external devices, ensuring that maintenance personnel can use it without specialized training.
• With its precise digital meters and automatic testing functions, the unit ensures accurate battery diagnostics, helping maintain optimal battery performance and reliability.
• The automatic termination and capacity testing functions allow for hands-off operation, freeing up technicians for other tasks and reducing the time needed for battery maintenance.
• The device’s ability to test and recharge batteries in one unit enhances efficiency and ensures batteries are always ready for use after testing.
• Compatible with a broad range of batteries, the Power Products CA-1550 CML can be used for various aircraft and ground support applications, providing flexibility for mixed fleets.

Capabilities

• Battery Capacity Testing:
  • The CA-1550 CML performs capacity testing by discharging batteries at a constant current and evaluating their ability to maintain voltage over a set period. It is essential for determining a battery’s remaining service life.
• Charging and Recharging:
  • In addition to testing, the unit recharges the battery after completing the capacity test, simplifying the overall maintenance process.
• Flexible Charging Methods:
  • Whether users prefer constant current or constant potential charging, the Power Products CA-1550 CML offers both methods, accommodating different battery types and charging preferences.
• Real-Time Monitoring:
  • The digital readouts of voltage, amperage, and time ensure users can monitor the process in real-time and make adjustments as needed for precise operation.
• Pass/Fail Testing for Aircraft Batteries:
  • The unit evaluates whether the battery can maintain the required minimum voltage for a preset duration, determining whether it passes or fails based on its performance, especially for emergency power systems.
• Field and Bench Applications:
  • Its portable, rugged design makes the CA-1550 CML suitable for use in various environments, from field operations to laboratory testing.

Specifications

• Charge Current: Adjustable from 0 to 25 amps.
• Discharge Current: Adjustable from 0 to 50 amps.
• Digital Readouts: Includes voltmeter, ammeter, and timer.
• DC Cable Options: Available with aircraft connectors, alligator clips, and rings.
• AC Input: 12A@115V or 6A@230V, 50/60 Hz.
• Power Supply: 115V (12 amps) or 230V (6 amps), adaptable to various regional power standards.

Space Requirements

The CA-1550 system comes in a sturdy transit case. It occupies 17" x 20" (432 mm x 508 mm) of table top space. Place the unit on a sturdy workbench in a well-ventilated area with the battery adjacent to it. The top of the unit has air flow from hot resistors. Always leave the cover open and the resistor vent uncovered when in operation, to maintain proper air flow.

BASIC INFORMATION

CHARACTERISTICS

* Power Products CA-1550-CML technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the CA-1550-CML such as the models sold by Avionteq.
