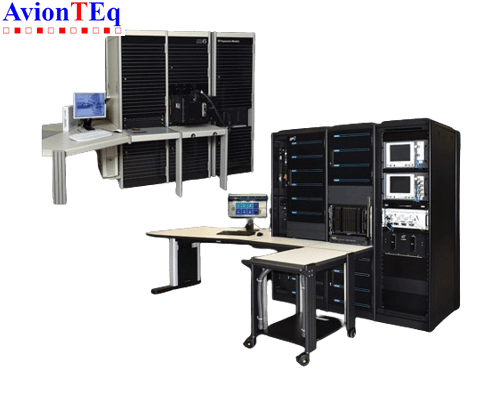

Viavi / Aeroflex RF Expansion Module (RFEM) for SPHEREA ATEC® Test Systems

RF Expansion Module (Viavi / Aeroflex) Features and Specifications *

The RF Expansion Module (RFEM) by VIAVI Solutions, in partnership with SPHEREA, is designed to enhance the capabilities of ATEC® Test Systems for airborne RF component testing. This module offers a fully integrated RF test system with an Ethernet interface, enabling easy retrofitting to existing ATEC® installations. It includes a robust test executive interface, making it user-friendly for test operators. The RFEM supports a comprehensive range of navigation, communication, TCAS, transponder, GPS, and other RF systems through an extensive TPS (Test Program Set) library developed by VIAVI, which is available on the SPHEREA Customer Support & Services MySpherea website.

The RFEM features high-performance PXI format synthetic instrument modules for signal generation and analysis. This includes the VIAVI ATC-5000NG NextGen ATC/DME Test Set and the RGS-2000NG NextGen TCAS Test Set, making it capable of supporting NextGen requirements set by the FAA and Europe's SESAR. The compact PXI instruments allow for greater resource density within the RFEM tower, facilitating the testing required by modern global air traffic management transformations.

Additionally, the RFEM's user interface is managed through the ATEC® Test System operator console PC, with Test Unit Adapters (TUAs) designed by VIAVI that connect to the matrix switch on the ATEC® Test System tower. These TUAs transfer all RF signals via an RF expansion interface, which is designed for future growth. Each TUA kit includes software, adapter hardware, interface cables, and a self-test adapter, ensuring comprehensive testing capabilities for various RF units.

The Viavi / Aeroflex RF Expansion Module (RFEM) price and features make it a very attractive option compared to similar automatic test equipment system available on the market.

Features

• Fully integrated RF test system within the ATEC® Test System.
• Ethernet interface for easy retrofit to existing ATEC® installations.
• High-performance PXI format synthetic instrument modules.
• Visual, guided operator instructions for each RF unit.
• Interface panel designed to accommodate future growth.

Benefits

• Simplified integration with existing and new ATEC® Test Systems.
• Enhanced operator experience through a robust test executive interface.
• Global service and support provided jointly by SPHEREA and VIAVI Solutions.
• Extensive TPS library supporting navigation, communication, TCAS, transponder, GPS, and other RF systems.
• Future-proof design ensuring longevity and adaptability to evolving testing requirements.

Capabilities

• Supports testing of a full range of airborne RF components.
• High-performance signal generation and analysis.
• NextGen ATC/DME and TCAS testing capabilities.
• Comprehensive RF signal transfer and testing through Test Unit Adapters.
• Modernized to meet Global Air Traffic Management transformations by FAA and SESAR.

Specifications

• PXI Instruments for high-performance testing:
  • ATC-5000NG NextGen ATC/DME Test Set
  • RGS-2000NG NextGen TCAS Test Set
  • ATES-GNSS GPS/Galileo 12CH Simulator
• Compatible with various aircraft models and RF systems:
  • Honeywell Radio Altimeters, DMEs, ADFs, Navigation Receivers, VHF COMM/DATA, VORs, Mode S Transponders, TCAS, Weather Radars, Environment Surveillance AESU, Multi-mode Receivers.
• Test run times varying by system (e.g., Radio Altimeter: 20 min, DME: 60 min, TCAS: 120 min).

BASIC INFORMATION

* Viavi / Aeroflex RF Expansion Module (RFEM) technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the RF Expansion Module (RFEM) such as the models sold by Avionteq.
