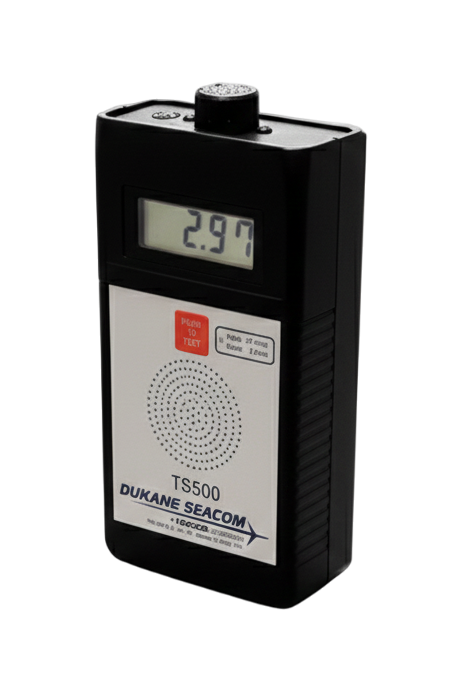

TS500 (Dukane Seacom) Features and Specifications *
The Dukane TS500: small and portable, the new gold standard in reliable operational testing of Underwater Locating Devices (ULDs). That, combined with its portability (lightweight / battery powered), means field utilization is appropriate, and that necessary ULD test can be conducted quickly and efficiently.
The tester is fully compatible with legacy and current Dukane Seacom beacons, providing dual-frequency testing at both 37.5kHz and 8.8 kHz utilizing multiple probes to accommodate various ULD models. The robust design and rugged carrying case ensure a reliable performance in harsh maintenance facilities. This new unit succeeds older models including the TS200 and 42A12/1, so brings expanded testing to the longest battery life in a compact package with an easy-to-use interface to set a modern standard for ULB test equipment.
Features
- Compact & lightweight
- Easy-to-read LCD Display
- Supports all Dukane ULDs
- Multiple probes for legacy and new ULDs
- Uses one 9 VDC battery
- Weighs 17 ounces
- Measures 6.5 in. x 3.25 in. x 1.3 in.
- Can test both 37.5 KHz and 8.8 KHz ULDs
Benefits
- Supports operational testing of Dukane Seacom’s ULDs as required every 24 months
- Can test all Dukane Seacom ULDs, including legacy and newer models
- When the ULD is attached to the aircraft’s Cockpit Voice and Flight Data Recorders, it can conduct necessary tests on aircraft
- Made of durable plastic
- Includes a rugged carrying case and three different test probes
- Direct replacement for superseded TS200 + 42A12/1
Capabilities
- Facilitates operational testing for Dukane Seacom’s ULDs
- Ability to Test All Dukane Seacom ULD's, Both Legacy and New
- When ULD is mounted to the aircraft’s Cockpit Voice and Flight Data Recorders, able to conduct necessary tests on aircraft
Application
This may include commercial aircraft, business jets, rotorcraft, military aircraft, and special mission aircraft, depending on the installed CVR/FDR beacon configuration.
Compatible Aircraft:
The TS500 is not aircraft-model specific. It is compatible with aircraft equipped with supported Dukane Seacom underwater locator beacons/underwater locating devices.
For a specific aircraft, AvionTEq recommends verifying compatibility based on the installed beacon model, frequency, maintenance manual requirements, and required TS500 probe/configuration.
The TS500 replaces the TS200 (which all aviation maintenance professionals are familiar with) and expands its capabilities. It has all the key features of the TS200, but it can test all Dukane Seacom ULDs, including legacy beacons DK100, DK120, DK130, and DK140, as well as the newer DK120/90, DK290, and DK180. As far as modern solutions combined with cost effectiveness go, this is the way to go.
Specifications
- Dimension: 6.5 in. x 3.25 in. x 1.3 in.
- Weight: 17 ounces
- Power Source: One 9 VDC battery
- Frequency Compatibility: 37.5 KHz and 8.8 KHz ULDs
Comparison Table: TS500 vs. Dukane TS200
|
Feature
|
Dukane TS500
|
Dukane TS200
|
|
Supported ULD Models
|
Legacy models (DK100, DK120, DK130, DK140) and newer models (DK120/90, DK290, DK180).
|
Limited to older ULD models; no support for newer models.
|
|
Frequency Support
|
37.5 KHz and 8.8 KHz
|
37.5 KHz only
|
|
On-Aircraft Testing
|
Can test ULDs while mounted to Cockpit Voice and Flight Data Recorders.
|
Not supported
|
|
Display
|
Easy-to-read LCD display
|
No LCD display or basic interface
|
|
Probes
|
Includes multiple probes for testing a variety of ULDs.
|
Limited probe options
|
|
Power Source
|
Single 9V DC battery
|
Likely similar, but less efficient
|
|
Dimensions and Weight
|
Compact (6.5 in. x 3.25 in. x 1.3 in.) and lightweight (17 ounces).
|
Bulkier and heavier
|
|
Carrying Case
|
Includes a rugged carrying case for protection.
|
No rugged carrying case included
|
|
Obsolescence
|
Current, replacing older models like the TS200 and 42A12/1.
|
Obsolete
|
BASIC INFORMATION
|
Part Number
|
TS500
|
|
Alternate Part Number
|
TS-500
|
|
Manufacturer
|
Dukane Seacom
|
CHARACTERISTICS
|
Weight (test set only)
|
17 ounces
|
|
Size (test set only)
|
16.51 cm x 8.25 cm x 3.3 cm
|
* Dukane TS500 technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the TS500 such as the models sold by Avionteq.
