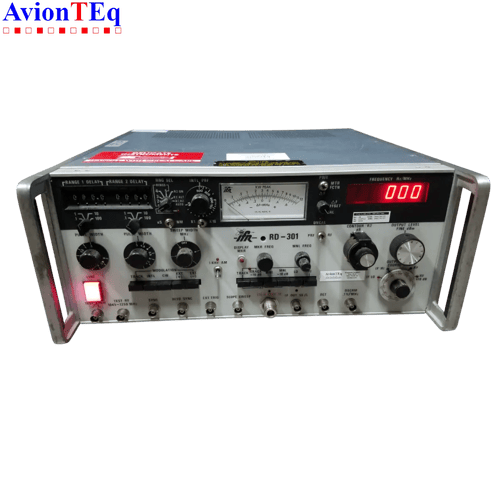

Viavi / Aeroflex IFR RD301A Features and Specifications *

The Aeroflex / IFR RD-301A avionics test equipment which satisfies simulation requirements for new generation noncoherent radar systems. The RD-301A will respond to radar transmitter pulse widths of 50 ns to 30 s in a frequency range of 9295 to 9500 MHz. All RF tests and measurements can be accomplished by connecting the RD-301A to the unit under test with the use of the supplied calibrated coaxial cable, waveguide coupler and dummy load.

• Heterodyne monitor output
• Contour boost capabilities
• Internal/external modulation for simulating target scintillation for turbulence detection radars
• Transmitter peak pulse measurements
• Automatic transmitter magnetron frequency tracking and digital readout
• (EFF) Transmitter effective peak pulse power measurements
• Built in PRF generator and digital readout
• Radar UUT sensitivity testing
• Two Year Limited Warranty
• Built-in IF sweep generator from 20 to 70 MHz and marker generator for IF and AFC testing
• Video detector, frequency discriminator and spectrum analyzer outputs

Benefits

• Provides complete testing and simulation of aircraft weather radar systems.
• Automatically acquires and tracks radar transmitter frequency for accurate troubleshooting.
• Measures radar transmitter peak pulse power and effective peak power.
• Supports Automatic Frequency Control (AFC) centering and alignment.
• Simulates turbulence targets using internal or external amplitude modulation.
• Evaluates radar receiver sensitivity and Minimum Discernible Signal (MDS).
• Eliminates the need for traditional echo boxes during AFC alignment.
• Provides comprehensive transmitter analysis through discriminator, detector, and heterodyne monitor outputs.
• Supports both RF and IF testing in a single portable test platform.
• Suitable for maintenance, calibration, troubleshooting, and performance verification of airborne weather radar systems.

Applications

The RD-301A Radar Test Set is designed for testing and maintenance of:

• Airborne weather radar systems
• X-band radar transmitters and receivers
• Non-coherent radar systems
• Narrow pulse marine radar systems
• Radar receiver sensitivity testing
• AFC alignment and verification
• Radar power measurements
• Magnetron performance analysis
• Radar contour threshold testing
• Radar turbulence detection system testing

Compatible Aircraft

The RD-301A interfaces directly with aircraft weather radar systems rather than specific aircraft models. It is commonly used on aircraft equipped with X-band weather radar systems, including:

• Commercial Airliners
• Business Jets
• Regional Aircraft
• Turboprop Aircraft
• Military Aircraft
• Helicopters equipped with weather radar

Note: Compatibility depends on the installed radar system rather than the aircraft platform.

Specifications

RF Signal Generator

• Frequency Range: 9.295 GHz to 9.500 GHz
• Automatic frequency tracking of radar transmitter
• Manual frequency adjustment capability
• Supports radar transmitter pulse widths from 50 ns to 30 μs
• Maximum radar transmitter input power: 120 W
• Peak Power Measurement Range:
  • 0.1 to 12 kW
  • Up to 120 kW with optional 10 dB attenuator

IF Signal Generator

• Frequency Range: 20 MHz to 70 MHz
• IF Low Output Range: -132 dBm to -20 dBm
• IF High Output Range: -92 dBm to +20 dBm
• IF Sweep Width: 0 to 4 MHz
• Sweep Rate: 100 Hz

Range Simulation

• Range Delay:
  • Range 1: 0.1 to 999.9 μs or NM
  • Range 2: 0.2 to 999.9 μs or NM
• Simulated Rings:
  • Up to 5 radar rings
• Dual target simulation capability
• Automatic R1/R2 pulse width discrimination

Modulation

• Internal AM modulation
• External AM modulation input
• Internal oscillator frequency:
  • 50 Hz to 500 Hz
  • 500 Hz to 5000 Hz
• Supports square wave modulation up to 50% AM

Power Requirements

• Input Voltage: 103 to 253 VAC
• Frequency: 50/60 Hz
• Power Consumption: ≤150 W
• Surge Current: <50 A

Interfaces

• X-Band I/O Connector
• IF Output Connector
• External Trigger Input
• External AM Input
• External FM Input
• Spectrum Analyzer Output
• Heterodyne Monitor Output
• Discriminator Output
• Video Output
• Sync Outputs

Basic Information

Shipping Details

* Viavi / Aeroflex IFR RD301A technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the IFR RD301A such as the models sold by Avionteq.

Viavi / Aeroflex IFR RD301A Radar Test Sets to Buy, Rent, Sell or Trade in

Avionteq offers refurbished or used Viavi / Aeroflex IFR RD301A WEATHER RADAR BENCH TESTER for sale or rent at most competitive price. All refurbished equipment are thoroughly tested and come with our warranty and fresh calibration certificate (when required). You can also sell your excess / surplus Viavi / Aeroflex IFR RD301A or receive trade-in credit towards purchase of other test equipment.
